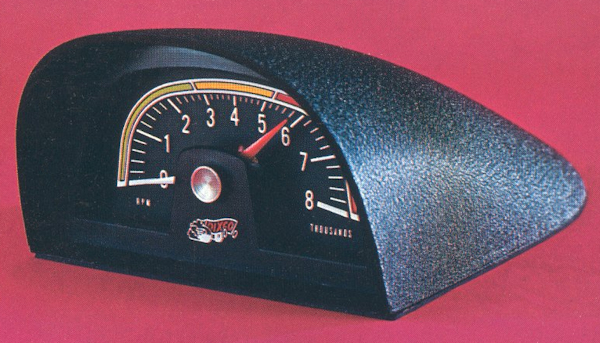

1972 - The Hi-Performance model of the popular DIXCO Hood-Mounted Tachometer. New color-coded scale tells driver at a glance when engine is in safe, critical, or harmful R.P.M. range, an extra feature for keeping your eyes on the road, track, or starting light.

The HT/x-7 Tricolor features hand-wired, zener-stabilized circuitry, recessed dial, with adjustable set pointer. Rugged construction protects against shock, vibration, and weather. The housing is black textured finish to reduce glare.

Unique mounting device provides theft protection (quick "disconnect" wiring for ease of installation). Factory calibrated. Complete installation instruction and mounting template provided. Display packaged in self selling display box, complete 360º view of product.

FULLY GUARANTEED.


HT/x Tachometer Specifications

- Size: 5¼" x 8⅝" x 3¼"
- Electrical Operation: 12 Volt, Negative Ground
- Meter: Jeweled D'Arsonval Movement
- Illumination: Internal "dash" light controlled
- Engine Speed Range from 0 - 8000 RPM in color-coded scale
- Black textured housing
- Red DIXCO Hustler Logo





An interesting fact is; The "early" 1972 tricolors still had the transparent plastic molded Inner-Tach-Housing.  which was visible from the outside and noticed as black.

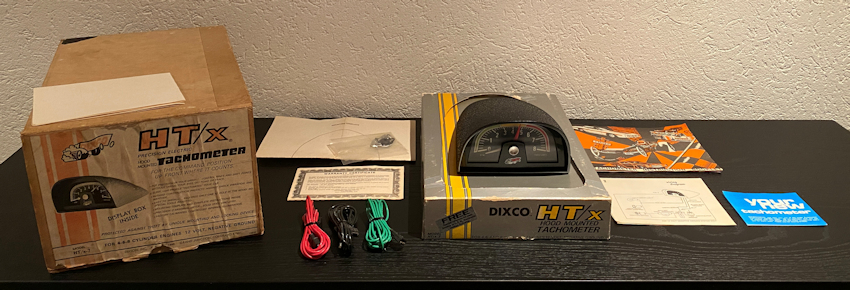

The DIXCO Hustler was delivered like all other hood tachometer models in the display box, packed in a large outer box. The scope of delivery also included a completely new installation booklet and the 3 separate connection cables.

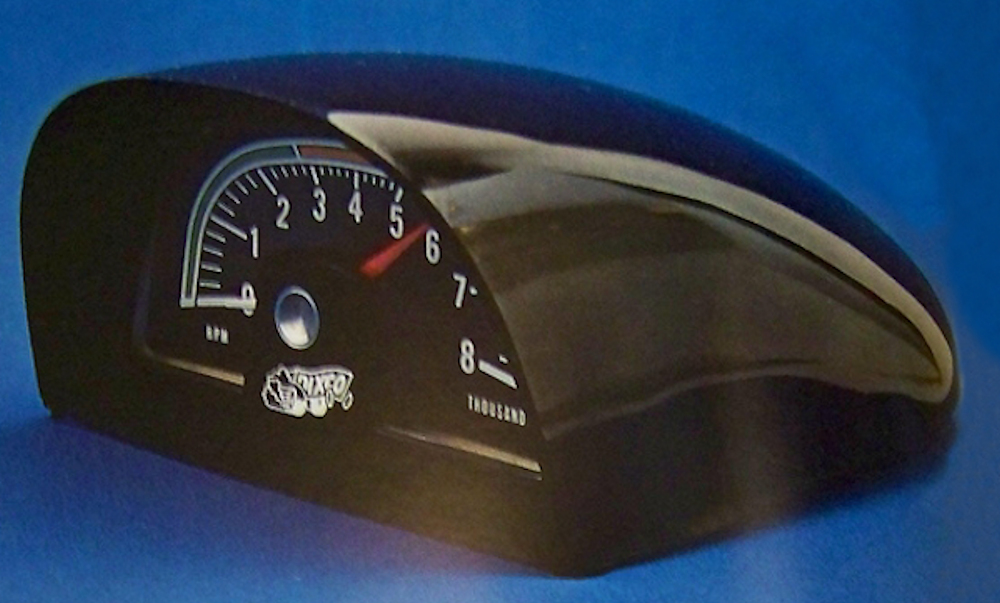

1973, the hood tachometer design became minimal changes. The Inner-Tach-Housing was now molded in in white-beige plastic and was very well visible from the outside.

The red DIXCO Hustler Logo was now completely in white.



The housing black textured housing was dropped and comes new with a glossy surface. Ready for the own paint job.

Both of the DIXCO Hustlers 1972-1973 were only available for a short time and a very hard to find today.
