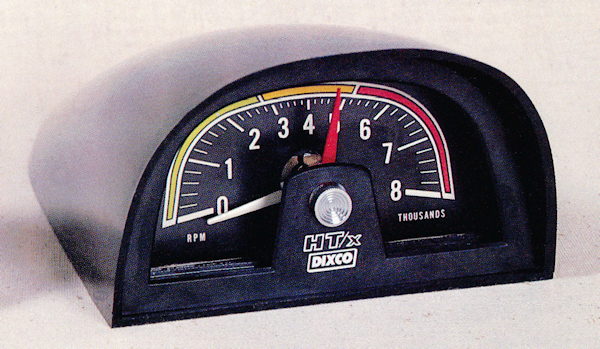

1974 - The Hi-Performance model of the popular DIXCO Hood-Mounted Tachometer. New color-coded scale tells driver at a glance when engine is in safe, critical, or harmful R.P.M. range, an extra feature for keeping your eyes on the road, track, or starting light.

The HT/x7 Tricolor features hand-wired, zener-stabilized circuitry, recessed dial, with adjustable set pointer. Rugged construction protects against shock, vibration, and weather. The housing is back finish, ready for own painting job.

Unique mounting device provides theft protection (quick "disconnect" wiring for ease of installation). Factory calibrated. Complete installation instruction and mounting template provided. Display packaged in self selling display box, complete 360º view of product.


HT/x Tachometer Specifications

- Size: 5¼" x 8⅝" x 3¼"
- Electrical Operation: 12 Volt, Negative Ground
- Meter: Jeweled D'Arsonval Movement
- Illumination: Internal "dash" light controlled
- Engine Speed Range from 0 - 8000 RPM in color-coded scale




HT/x Ordering Information

Shipping Weight-12 LBS.

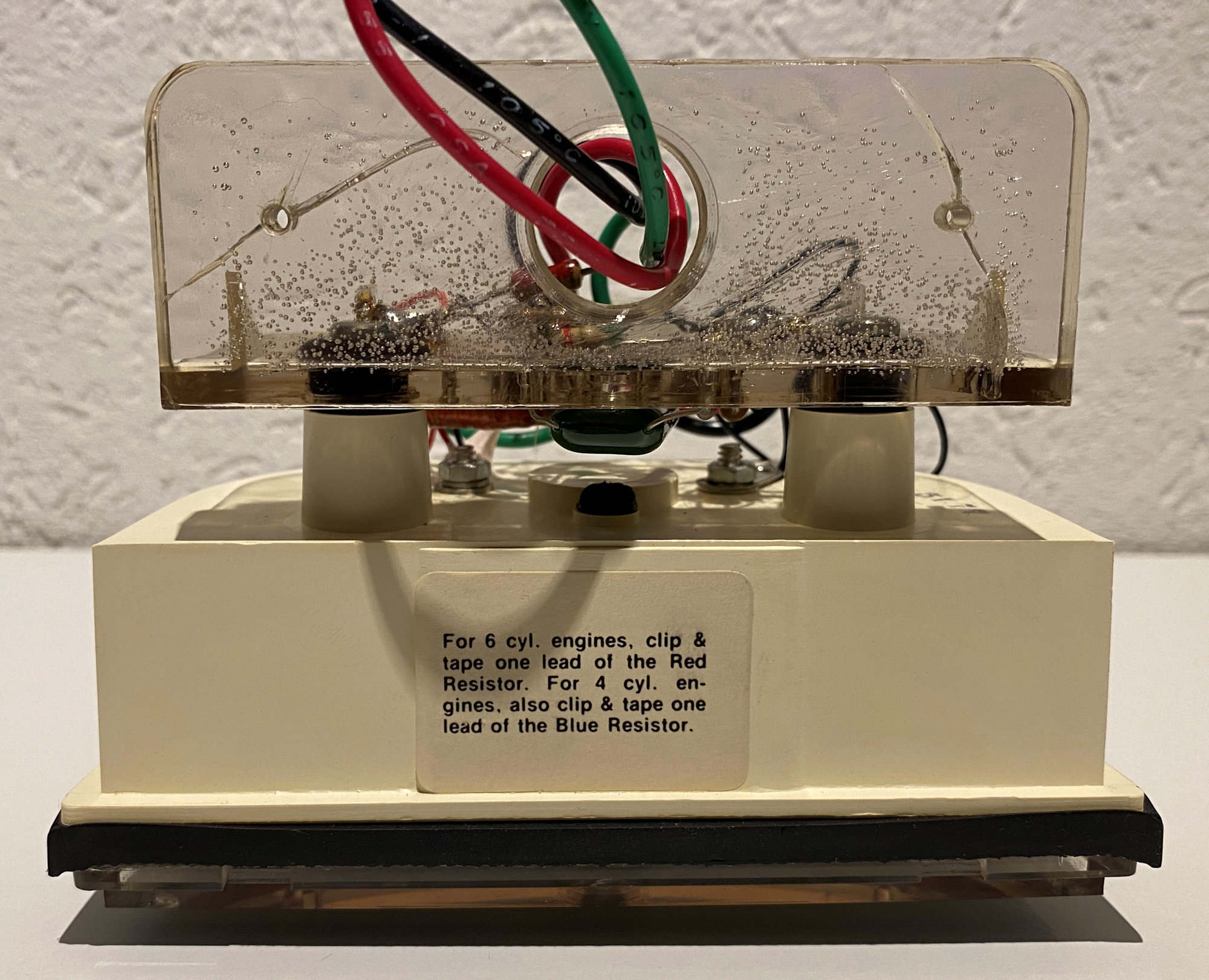

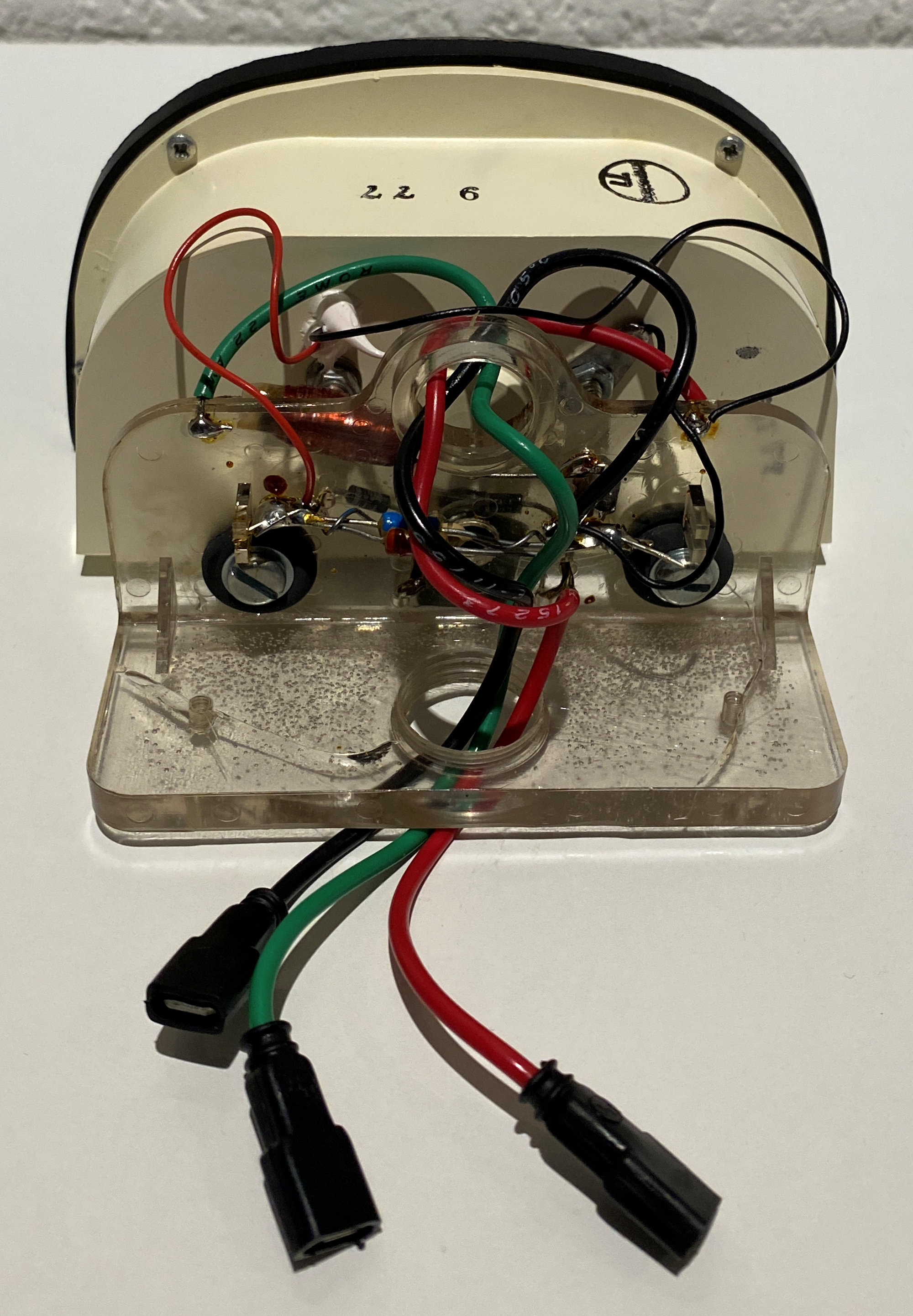

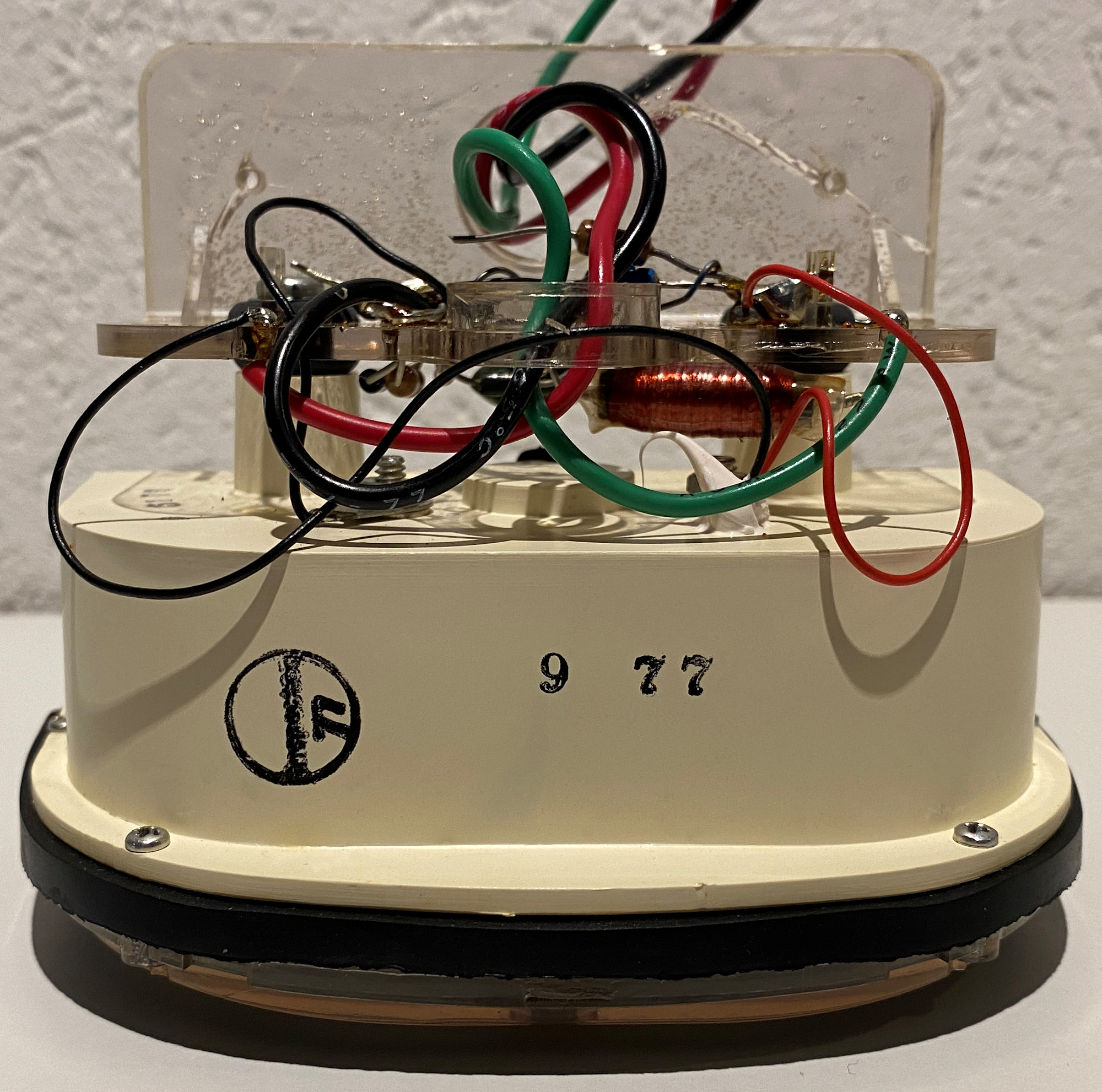

1973 : Details, from the white Inner-Tach-Housing with front illumination

All versions with the 3-cable principle had a white Inner-Tach-Housing
