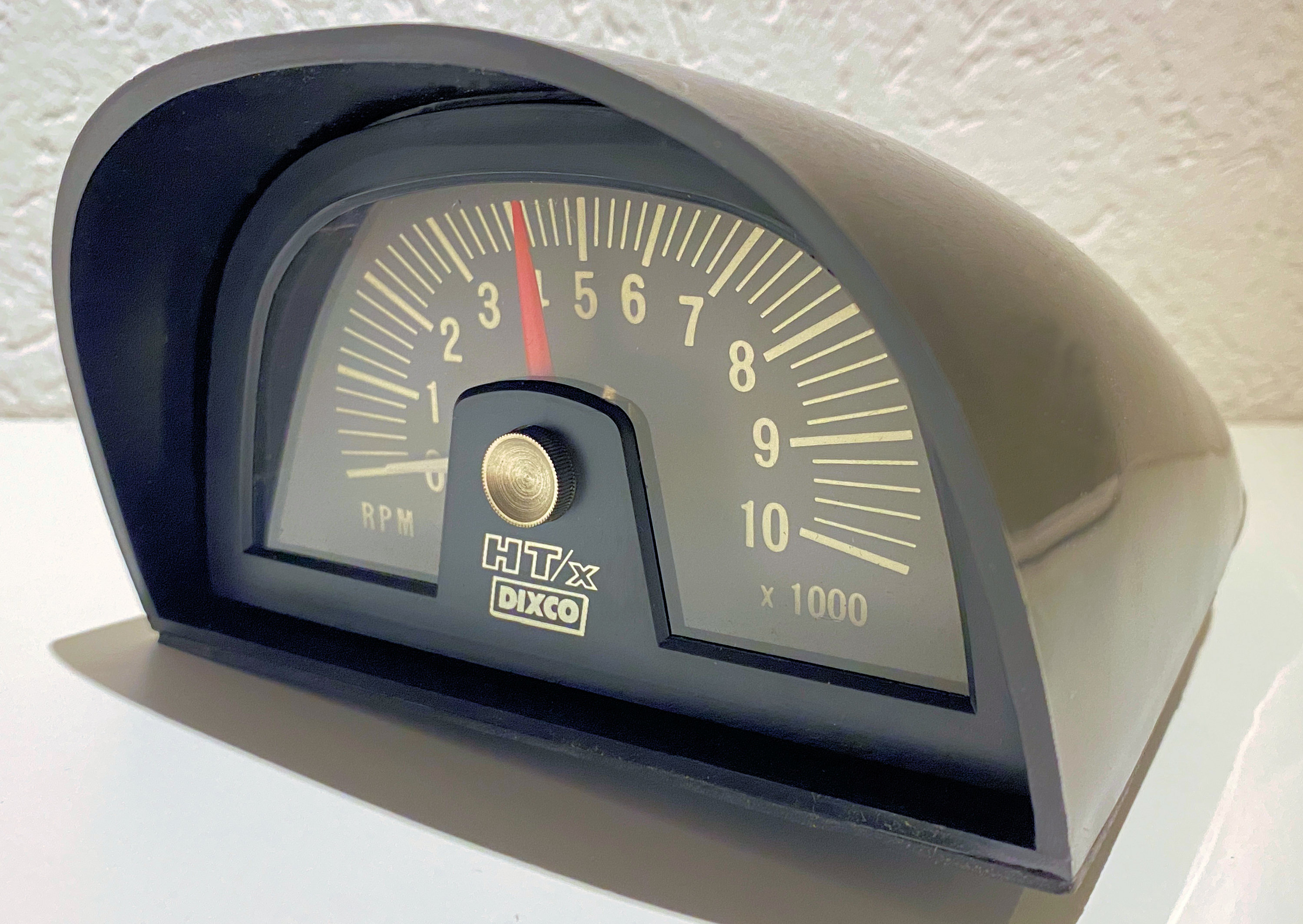

DIXCO developed the innovative HTx7 hood tachometer and released it to the US market at the end of 69. The design included a black and white display lettering scale with a white RPM pointer and a red RPM engine limiter pointer that could be set from the outside.

The speedometer connection to the engine was based on the 4-cable principle. these are 2 meters long and are connected directly into the speedometer.

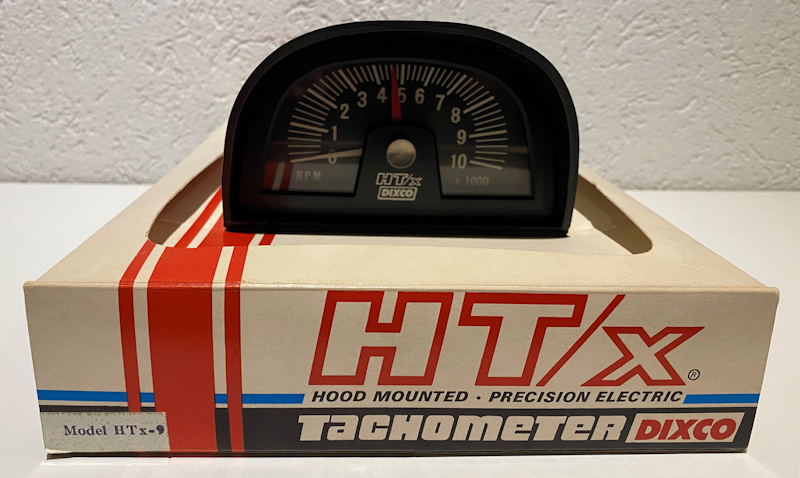

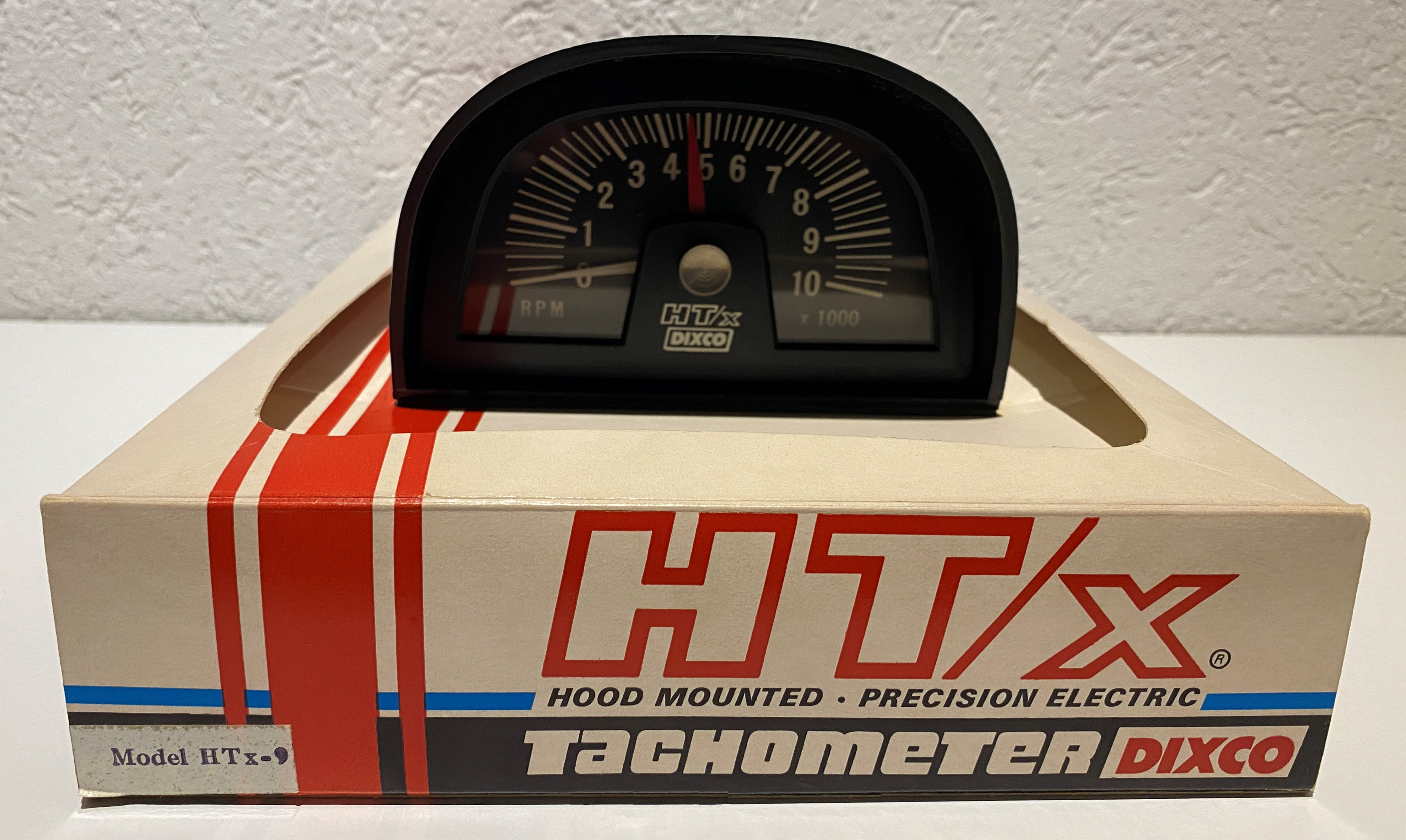

The very special version from DIXCO have an RPM range up to 10'000. The legendary HT/x-9


FULLY GUARANTEED. FREE HT/x TACH DECAL INCLUDED


DIXCO THE LOOK OF THE FUTURE

Now read and control RPM's instantly and keep your eyes on the road, track, or starting light. DIXCO's new HT/x Hood-Mounted Tachometer gives your car that sporty, custom look.

The HT/x features hand-wired, solid-state circuitry, recessed dial, Factory calibrated, with adjustable red set pointer. Rugged construction protects against shock, vibration, and weather. Unique mounting and locking device provide theft protection (quick "disconnect" wiring for ease of installation. Complete installation instructions and mounting template provided). Display packaged in self-selling display box, complete 3600 view of product.



Anti-theft protection

The tachometers comes with an integrated anti-theft protection. This prevented the rotation on the engine hood. The mounting hardware was included and requires only one 3/4 Inch hole in the hood. The tachometer is fixed from below and is also protected against vibration and weather.



HT/x Tachometer Specifications

- Size: 5¼" x 8⅝" x 3¼"
- Electrical Operation: 12 Volt, Negative Ground
- Meter: Jeweled D'Arsonval Movement
- Illumination: Internal "dash" light controlled
- Engine Speed Range from 0 - 8000 RPM


The special Version HT/x-9 was developed for high RPM engines, specially for the Drag Race!

HT/x Ordering Information

Shipping Weight-12 LBS.
